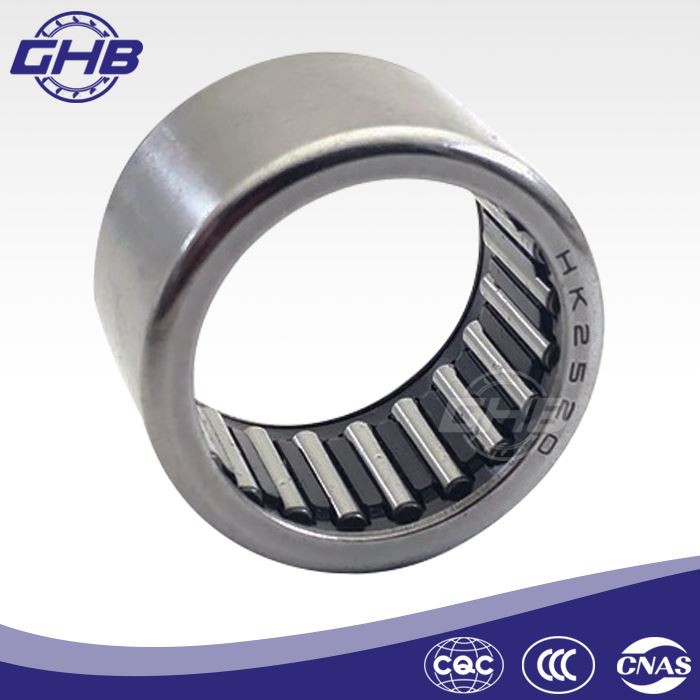

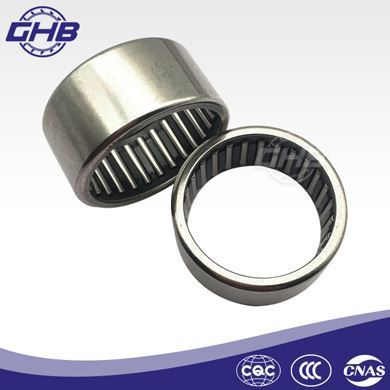

Drawn Cup Needle Roller Bearings

Material: GCr15
Precision: P0, P6, P5
Working temperature: +140℃(open), -30℃~100℃(sealed)
Cage material: Steel, PA66
Type: Roller bearing
Application: Machinery
Free samples and technical drawing: Available
Technology standard: DIN 618-1
Certificate: ISO9001:2015

Send Inquiry Chat Now

Download

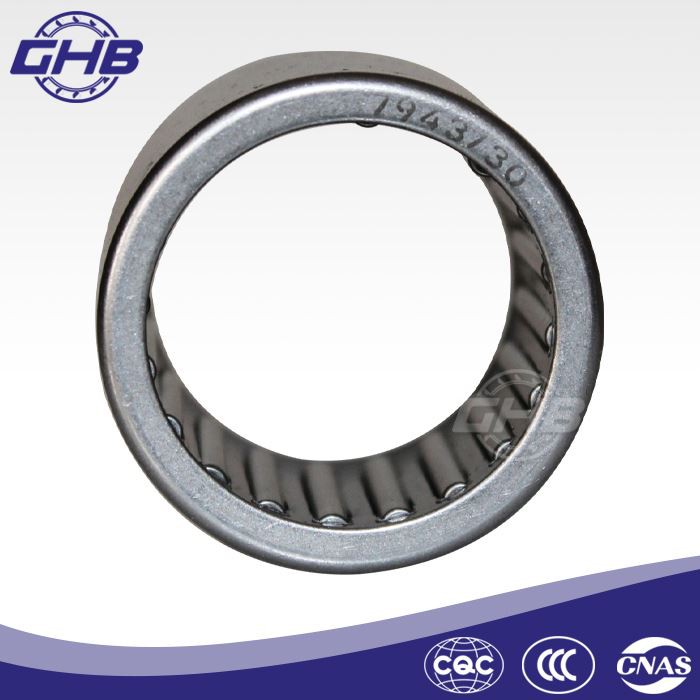

Description

for this product.

Introduction:

As a manufacturer, we are proud to introduce our specialized product - Drawn Cup Needle Roller Bearings. Our product is designed and manufactured specifically for industrial machines that require high precision, strength, and endurance.

Overview:

The Drawn Cup Needle Roller Bearings is a type of precision rolling element bearing that consists of an outer casing, an inner ring, and a needle roller. The rollers are retained and guided by a cage, and the bearing is used to support radial loads (perpendicular to the axis of rotation) while minimizing friction and wear on the contacting surfaces.

Features:

There are several features of our Drawn Cup Needle Roller Bearings that make it an attractive option for industrial machine manufacturers and merchants. They include:

1. High Precision: Our Drawn Cup Needle Roller Bearings are manufactured with high-precision technology, which allows our products to achieve zero clearance and accurate positioning.

2. Low Friction: The design of our Drawn Cup Needle Roller Bearings reduces friction between the roller and the bearing surface, which results in high operating efficiency and long service life.

3. High Load Capacity: Our product can support radial loads of high magnitude while maintaining high precision and low friction. This makes it ideal for machines that require strong support and minimal friction.

4. Customized Design: We offer customized designs of our Drawn Cup Needle Roller Bearings to meet specific requirements of our customers. This means that we can manufacture specialized products that are tailored to the needs of our clients.

Application:

Our Drawn Cup Needle Roller Bearings can be used in a wide range of industries, including but not limited to:

1. Automotive Industry: Our products can be used in various parts of an automobile, including engine components, transmission systems, and suspension systems.

2. Industrial Machinery: Our Bearings can be used in various types of machinery, such as textile machines, printing presses, and agricultural machinery.

3. Aerospace Industry: Our product is suitable for applications that require high precision and high load capacity, such as in aviation and space technology.

4. Medical Industry: Our product can be used in medical equipment and devices that require high precision, such as laboratory equipment or high-speed drills.

Conclusion:

In conclusion, our Drawn Cup Needle Roller Bearings are a premium quality product manufactured with high precision technology suitable for industrial machine manufacturers and merchants. Our product possesses many benefits, including high precision, low friction, high load capacity, and customizable design. These features make our product attractive and suitable for a wide range of industries, including the automotive, industrial machinery, aerospace, and medical sectors. We look forward to serving you and providing high-quality products that exceed your expectations.

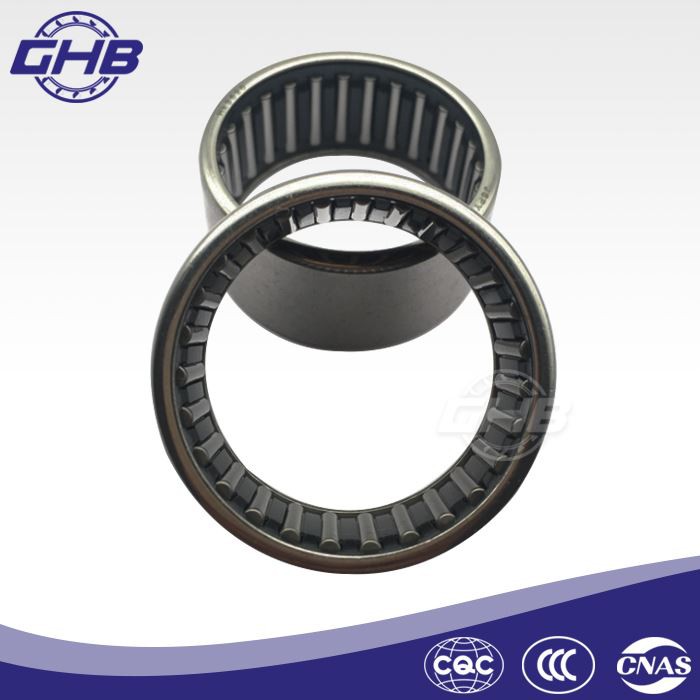

● Introduction

Drawn cup needle roller bearings are divided into HK type and BK type, HK is perforated type, BK is sealed type. Compared with the perforated bearing, the sealed bearing is closed at one end, which is suitable for the shaft end and can withstand a small axial swimming force. The bearing consists of an outer ring, a cage and a set of needle rollers. The outer ring of the bearing is made of 1mm thick low-carbon steel strip or low-carbon alloy strip, which is precision stamped and formed. It is a thin ferrule. The bearing has a small radial section, a large load capacity, and a high rotation speed. It is especially suitable for large-volume products that require economy, as well as for occasions where the installation space is limited and the housing holes are not suitable for raceways. Drawn cup needle roller bearings have no inner ring, the needle roller is in direct contact with the surface of the shaft, and the machining accuracy and heat treatment hardness of the shaft should be the same as the inner ring of the bearing.

Drawn cup needle bearings are used in machine tools, automobiles, motorcycle gearboxes, textile machinery and other fields.

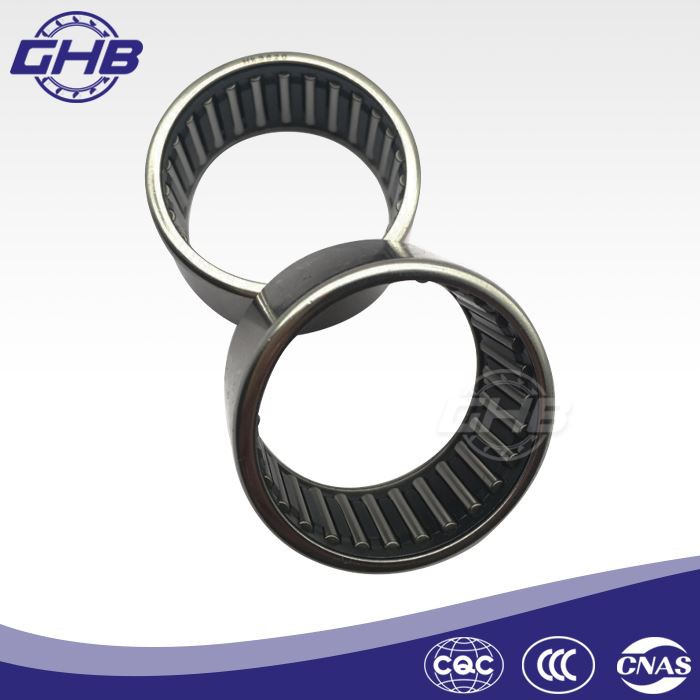

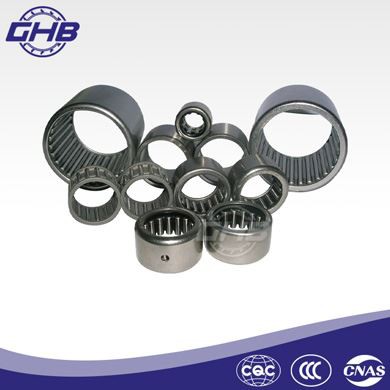

● Bearing Series

The types of the bearings include HK series and BK series.

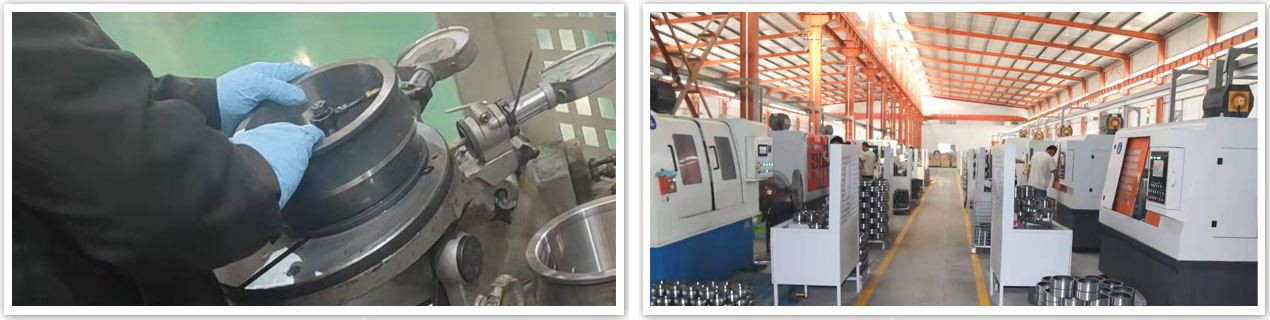

● Production Details

◆ Stamping cage

As for stamping cages, they are generally stamped from steel plates at room temperature using molds. The characteristics of their processing technology are: stamping processing is completed by molds and equipment, and the shape and dimensional accuracy and surface quality of the workpiece can be guaranteed during processing. Stamping cage It can process complex cages, with high productivity and low cost, but the mold manufacturing is complex and the cycle is long. The processing of stamping cage generally includes punching, bending, drawing, forming and other processes, among which the forming processing includes necking, flanging, bulging, shaping and correction.

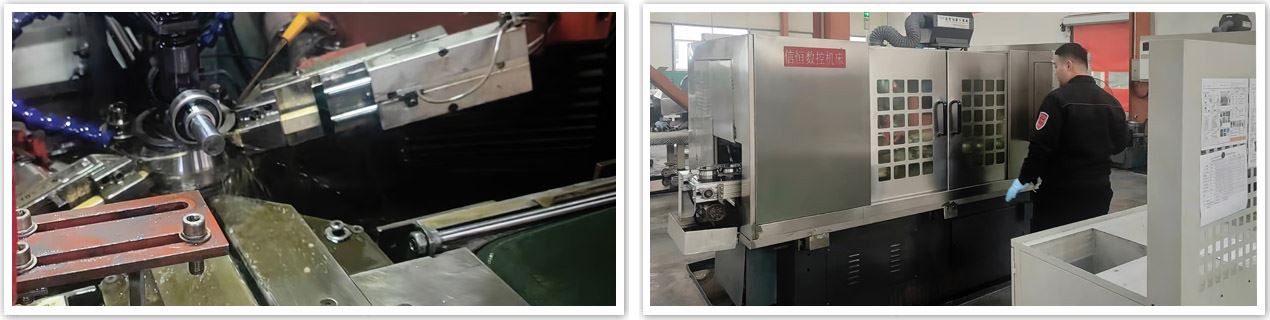

drawn cup bearing

◆ Sampling inspection standard

GB/T2828-2003, GB/T2829-2001, GB/T6378-2002, GB/T8051-2002, GB/T8052-2002, GB/T8053-2001, GB/T8054-1995, GB/T10111-1988, GB/T13262-1991, GB/T13263-1991, GB/T13264-1991, GB/T13546-1992, GB/T13732-1992, GB/T13393-1992, GB/T14437-1997 , GB/T14900-1994, GB/T15239-1994, GB/T15482-1995, GB/T15500-1995, GB/T163061996, GB/T16307-1996.

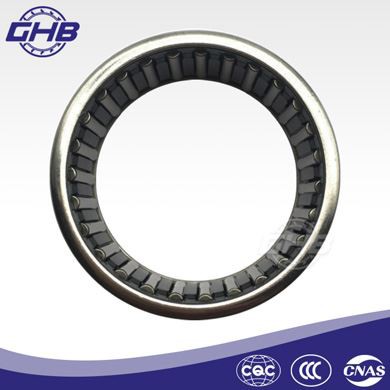

bearing roller needle

● Bearing Contact Fatigue Failure

Bearing contact fatigue failure refers to the failure caused by the alternating stress on the working surface of the bearing. Contact fatigue spalling occurs on the working surface of the bearing, which is often accompanied by fatigue cracks. It first occurs from the maximum alternating shear stress below the contact surface and then spreads to the surface to form different spalling shapes, such as pitting or pitting spalling. Flaking into small flakes is called shallow spalling. As the peeling surface gradually expands, it often expands to the deep layer, forming deep peeling. Deep spalling is a fatigue source for contact fatigue failure.

● Certification

hk2020 needle bearing

● About Us

Shaanxi Gainhui Heavy Industries Co., Ltd. is a professional bearing manufacturer and and distributor in china. Equipped with a professional large factory, we can supply competitive bearing products and OEM service to worldwide customers. With high quality, competitive price and great after-sale service of drawn cup needle roller bearings, welcome to contact us in time.

Because we are focused, we are professional.

● Packing Methods

Tube Package

Single Box Package

Pallet Package

● Delivery Methods

By Express

By Sea

By Air

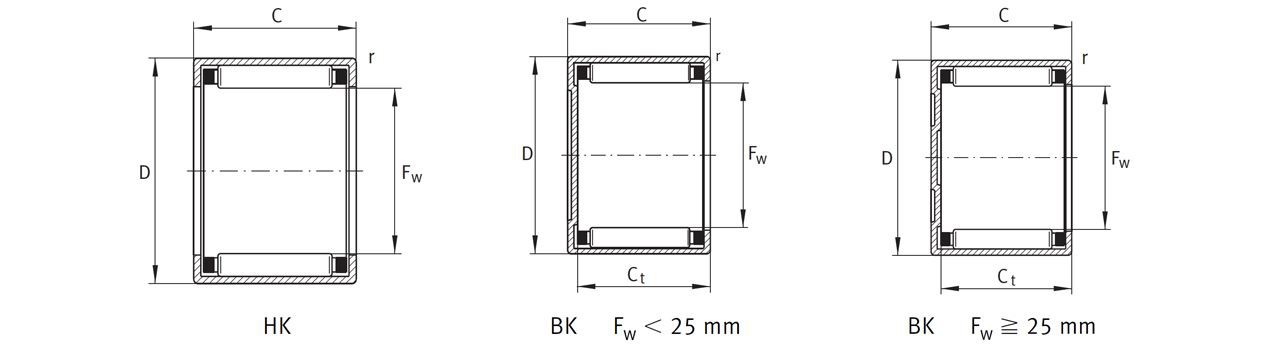

● Technical Parameters

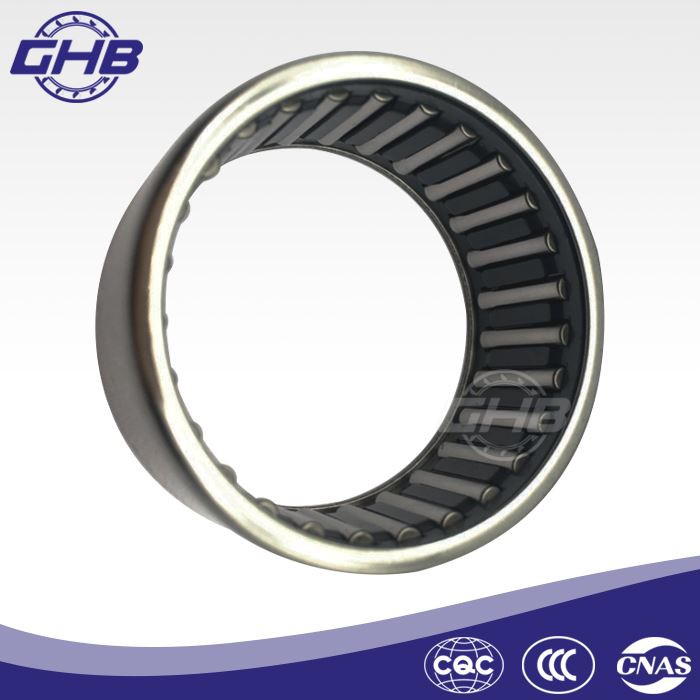

drawn cup needle bearing

Bearing designation	Mass	Bearing designation	Mass	Dimensions (mm)					Basic dynamic load rating	Basic static load rating	Fatigue load limit	Limiting speed	Reference speed	Inner ring
	m		m	Fw	D	C	Ct	r	Cr	Cor	Cur	nG	nB	LR	IR
	≈g		≈g			-0.3	min.	min.	N	N	N	min–1	min–1
HK0205-TV	0.3	–	–	2	4.6	5	–	0.3	465	265	28.5	58 000	93 000	–	–
HK0306-TV	1	BK0306-TV	1	3	6.5	6	5.2	0.3	1 230	840	113	48 000	57 000	–	–
HK0408	2	BK0408	2.1	4	8	8	6.4	0.3	1 780	1310	144	42 500	44 500	–	–
HK0509	2	BK0509	2.1	5	9	9	7.4	0.4	2 400	1990	239	39 000	36 500	–	–
HK0606	1.5	–	–	6	10	6	–	0.4	1 610	1220	167	36 500	31 500	–	–
HK0608	2.1	–	–	6	10	8	–	0.4	2 030	1650	184	36 500	31 500	–	–
HK0609	2.5	BK0609	2.6	6	10	9	7.4	0.4	2 850	2600	310	36 500	30 500	–	–
HK0709	2.6	BK0709	2.9	7	11	9	7.4	0.4	3 100	2950	355	33 000	26 500	–	–
HK0808	2.7	BK0808	3	8	12	8	6.4	0.4	2 750	2600	290	29 500	23 800	–	–
HK0810	3	BK0810	3.4	8	12	10	8.4	0.4	3 800	3950	500	29 500	23 200	–	IR5X8X12
HK0908	3	–	–	9	13	8	–	0.4	3 550	3750	440	26 500	20 600	–	–
HK0910	4	BK0910	4.3	9	13	10	8.4	0.4	4 250	4650	600	26 500	20 600	–	–
HK0912	4.6	BK0912	4.9	9	13	12	10.4	0.4	5 300	6300	860	26 500	20 200	–	IR6X9X12
HK1010	4.1	BK1010	4.3	10	14	10	8.4	0.4	4 400	5100	650	24 300	18 700	LR7X10X10,5	IR7X10X10,5
HK1012	4.8	BK1012	5	10	14	12	10.4	0.4	5 500	6800	930	24 300	18 400	–	IR7X10X12
HK1015	6	BK1015	6.2	10	14	15	13.4	0.4	6 800	8800	1 210	24 300	18 200	–	IR7X10X16
HK1210	4.6	BK1210	5.2	12	16	10	8.4	0.4	4 950	6200	800	20 700	15 700	LR8X12X10,5	IR8X12X10,5
HK1212	9	BK1212	10	12	18	12	9.3	0.8	6 500	7300	860	20 000	15 500	LR8X12X12,5	IR8X12X12,5
HK1312	10	BK1312	11	13	19	12	9.3	0.8	6 800	7900	940	18 700	14 400	LR10X13X12,5	IR10X13X12,5
HK1412	10.5	BK1412	12	14	20	12	9.3	0.8	7 100	8500	1 010	17 500	13 500	–	IR10X14X13
HK1512	11	BK1512	13	15	21	12	9.3	0.8	7 900	9400	1 150	16 300	12 300	LR12X15X12,5	IR12X15X12,5
HK1516	15	BK1516	17	15	21	16	13.3	0.8	10 500	14 400	1 780	16 500	12 300	LR12X15X16,5	IR12X15X16,5
HK1522-ZW	20	–	–	15	21	22	–	0.8	13 400	19 500	2 380	16 500	12 300	LR12X15X22,5	IR12X15X22,5
HK1612	12	BK1612	14	16	22	12	9.3	0.8	7 600	9700	1 160	15 600	11 900	–	IR12X16X13
HK1616	16	BK1616	18	16	22	16	13.3	0.8	10 900	15 300	1 900	15 600	11 600	–	IR12X16X16
HK1622-ZW	22	BK1622-ZW	24	16	22	22	19.3	0.8	13 100	19 400	2 310	15 600	11 700	–	IR12X16X22
HK1712	12	–	–	17	23	12	–	0.8	7 900	10 300	1 230	14 700	11 200	–	–
HK1812	13	BK1812	15	18	24	12	9.3	0.8	8 100	10 900	1 300	14 000	10 700	LR15X18X12,5	–
HK1816	18	BK1816	20	18	24	16	13.3	0.8	11 600	17 300	2 140	14 000	10 400	LR15X18X16,5	IR15X18X16,5
HK2010	12	–	–	20	26	10	–	0.8	6 400	8200	1 040	12 700	10 000	–	–
HK2012	14	–	–	20	26	12	–	0.8	8 600	12 100	1 450	12 700	9700	–	IR15X20X13
HK2016	19	BK2016	22	20	26	16	13.3	0.8	12 700	20 100	2 500	12 700	9300	LR17X20X16,5	IR17X20X16,5
HK2020	24	BK2020	27	20	26	20	17.3	0.8	15 700	26 000	3 500	12 700	9300	LR17X20X20,5	IR17X20X20,5
HK2030-ZW	35	–	–	20	26	30	–	0.8	21 800	40 000	5 000	12 700	9200	LR17X20X30,5	IR17X20X30,5
HK2210	13	–	–	22	28	10	–	0.8	7	500	10 500	1360	11 700	9000	–
HK2212	15	BK2212	18	22	28	12	9.3	0.8	9	100	13 400	1600	11 700	8900	–
HK2216	21	BK2216	24	22	28	16	13.3	0.8	13 400	22 100	2800	11 700	8500	–	IR17X22X16
HK2220	26	–	–	22	28	20	–	0.8	16 500	29 000	3850	11 700	8500	–	IR17X22X23
HK2512	20	–	–	25	32	12	–	0.8	11 000	15 200	1990	10 200	7800	LR20X25X12,5	–
HK2516	27	BK2516	32	25	32	16	13.3	0.8	15 600	24 000	3150	10 200	7500	LR20X25X16,5	IR20X25X17
HK2520	33	BK2520	38	25	32	20	17.3	0.8	19 900	33 000	4200	10 200	7400	LR20X25X20,5	IR20X25X20,5
HK2526	44	BK2526	48	25	32	26	23.3	0.8	25 500	45 000	6200	10 200	7300	LR20X25X26,5	IR20X25X26,5
HK2538-ZW	64	BK2538-ZW	68	25	32	38	35.3	0.8	34 000	66 000	8400	10 200	7300	LR20X25X38,5	IR20X25X38,5
HK2816	29	–	–	28	35	16	–	0.8	16 400	26 500	3450	9 200	6800	–	IR22X28X17
HK2820	36	–	–	28	35	20	–	0.8	20 900	36 000	4650	9 200	6700	LR22X28X20,5	IR22X28X20,5
HK3012	23	BK3012	28	30	37	12	9.3	0.8	12 100	18 200	2390	8 600	6600	LR25X30X12,5	–
HK3016	31	BK3016	38	30	37	16	13.3	0.8	17 200	29 000	3750	8 600	6400	LR25X30X16,5	IR25X30X17
HK3020	39	BK3020	47	30	37	20	17.3	0.8	22 000	39 500	5100	8 600	6300	LR25X30X20,5	IR25X30X20,5
HK3022	42	–	–	30	37	22	–	0.8	24 800	46 000	6100	8 600	6200	–	–
HK3026	51	BK3026	58	30	37	26	23.3	0.8	28 000	54 000	7400	8 600	6200	LR25X30X26,5	IR25X30X26,5
