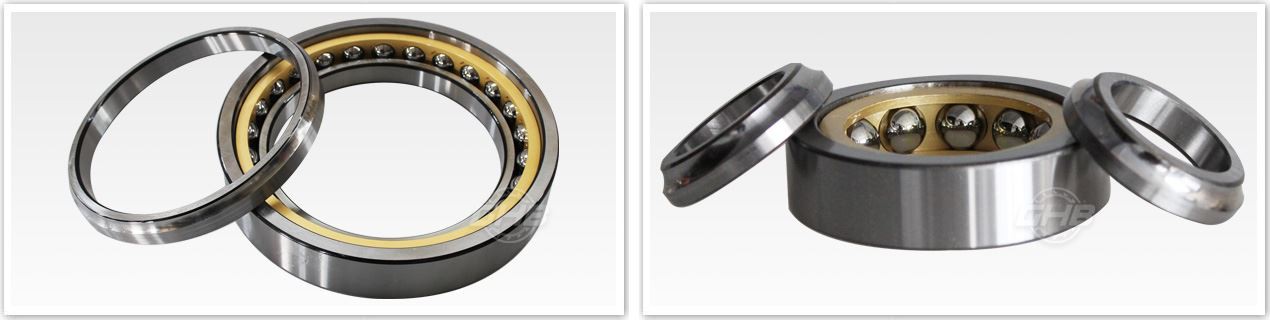

What is Single Row Angular Contact Ball Bearing?

Single row angular contact ball bearings can simultaneously withstand radial load and axial load, can also withstand pure axial load, its axial load capacity by the contact angle a (load line and bearing radial plane between the angle) decision, the larger the contact angle, the greater the ability to withstand the axial load. Angular contact ball bearings are loaded with more balls than deep groove ball bearings, so the load capacity is the largest in the ball bearing, rigidity is also large, and can be pre-adjusted, good workmanship, tolerance level is one of the highest types of ball bearings, especially for high-speed, high-precision occasions.

Single row angular contact ball bearings are suitable for double-supported shafts with small spacing and good rigidity, such as machine tool spindles, especially grinding wheel shafts, hydraulic gearboxes of internal combustion engines, worm gear reducers, electric drills, centrifuges and superchargers, etc.

High-speed precision angular contact ball bearings, mainly used for lighter loads of high-speed rotating occasions, requiring high precision bearings, high speed, low temperature and low vibration and a certain service life. It is often used as a support for high-speed electric spindles installed in pairs, and is a key supporting part of high-speed electric spindles for internal surface grinding machines.
