What are the Structural Characteristics of the Deep Groove Ball Bearings?

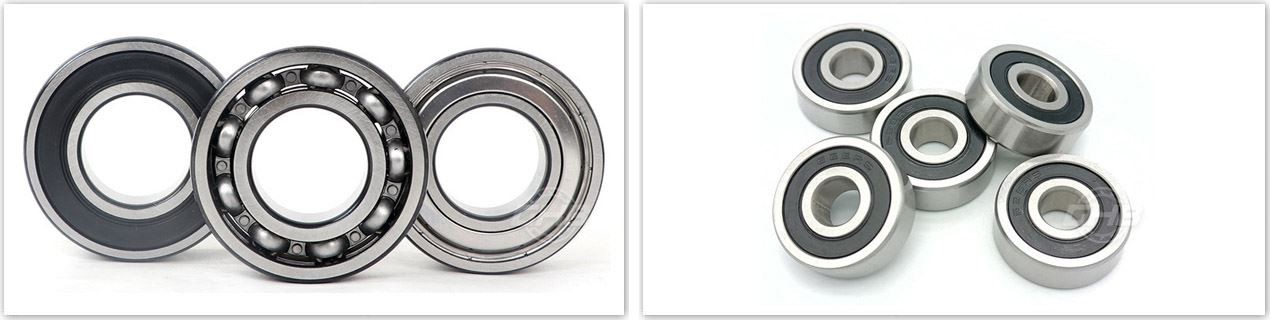

The inner and outer ring raceways of deep groove ball bearings are arc-shaped deep grooves, and the groove radius is slightly larger than the ball radius. It is mainly used to withstand radial loads or certain axial loads. When the radial clearance of the bearing is increased, it has the function of angular contact ball bearing, can withstand large axial loads, and is suitable for high-speed rotation. Bearings can still work normally when the shell hole and shaft are tilted relative to 8'~16', but it affects its service life. In the case of high rotational speed and inappropriate use of thrust ball bearings, such bearings can be used to withstand pure axial loads.

Deep groove ball bearings generally use a steel plate stamping cage synthesized by two parts, but the big size and high-speed bearings use the solid cage, which is guided by a ball like a stamping cage. The cage of high-speed deep groove ball bearings is usually guided by the inner or outer ring edges.

Compared with other types of bearings of the same size, the friction coefficient of deep groove ball bearings is small, the vibration and noise are also low, the ultimate rotation speed is high, and the accuracy is high. It is the preferred bearing type for users to choose the type. However, this type of bearing is not resistant to impact and is not suitable for heavy loads.

Deep groove ball bearings are simple in structure and easy to use. They are the kind of bearings with the largest production batch and widest application range. It is widely used in automobiles, household appliances, machine tools, motors, water pumps, agricultural machinery, textile machinery and many other fields. Its output accounts for more than 70% of the total output of bearings, which is the highest output, the most commonly used and cheapest type of bearing in China.

The basic structure of deep groove ball bearings is 60000 type. Generally, this structure can be used for parts without special requirements for installation, sealing and matching.

Type 60000N type is a deep groove ball bearing with a stop groove in the outer ring. There is a deep groove ball bearing with a stop ring groove on the outer diameter of the outer ring. After installing the stop ring, the axial positioning of the bearing in the bearing housing hole can be simplified and the axial size of the parts can be reduced. This kind of bearing can only withstand a small axial load.

Deep groove ball bearings with dust covers are protected by steel plate dust covers to prevent grease leakage and external foreign bodies from invading people. Deep groove ball bearings with dust cover are divided into one side with dust cover (60000-Z) and two sides with dust cover (60000-2Z). The radial gap between the dust cover and the edge of the inner ring is a non-contact seal, so the friction torque is small. Compared with bearings with sealing rings, their dustproof performance is poor, but the ultimate speed is higher. When the bearing is assembled, an appropriate amount of lubricant is filled. There is no need to clean and add lubricant during installation and use, and no need to add lubricant during the allowed lubrication period. Such bearings are suitable for parts that require dust protection and provide lubricants and check lubrication inconveniently.

Deep groove ball bearings with sealed covers are divided into deep groove ball bearings one side with sealed covers (60000-RS) and deep groove ball bearings two sides with sealed covers (60000-2RS). Generally, steel skeleton nitrile rubber sealed covers are used, and the sealing lips are in radial contact with the edge of the inner ring. They are contact sealing. The sealing effect is good, but friction resistance is blocked. The force is large and the limit speed is low. If the sealing lip does not touch the edge of the inner ring, it is a non-contact seal. The main structures are 60000-RZ and 60000-2RZ. The ultimate rotation speed is the same as that of the basic deep groove ball bearing. Bearings are filled with an appropriate amount of lubricant during assembly, and there is no need to clean and add lubricant during installation and use.
