6208 Low Noise Bearing

6208 Low Noise Bearing

Material: GCr15, Carbon steel
Precision: ABEC1(P0), ABEC3(P6), ABEC5(P5)
Noise level and vibration: ZV, Z1V1, Z2V2, Z3V3, Z4V4
Radial clearance: C0, C3
Working temperature range: -30℃~120℃
Lubricated: Oil, Grease
Grooves: Superfinishing
Service: OEM, ODM
Payment terms: T/T, L/C, Paypal, Western union, Moneygram
Feature: High-precision, Low-noise, Long-life

Description

.



Introduction:



When it comes to manufacturing and supplying high-quality bearings, the name of our company is always at the forefront. We specialize in providing top-quality bearings to merchants located in various countries around the world. One of our flagship products is the 6208 Low Noise Bearing, which is designed to offer superior performance and reduced noise levels. In this article, we shall introduce our product and highlight some of the aspects that make it stand out from the competition.



Product Overview:



The 6208 Low Noise Bearing is a premium quality bearing that is designed to offer low- noise performance while being highly durable and reliable. The bearing is integrated with unique features such as a specially designed internal geometry, high-quality materials, and advanced lubrication systems, all of which offer superior performance.



One of the most significant aspects of the 6208 Low Noise Bearing is that it is capable of working effectively, even under extreme operating conditions, including high-temperature, high-speed, and high-load applications. This makes it an ideal choice for use in industries such as automotive, aerospace, and manufacturing, where reliability and longevity are of utmost importance.



Features and Benefits:



The 6208 Low Noise Bearing is designed to offer superior performance and reduced noise levels, making it an ideal choice for a wide range of applications. Some of the key features and benefits of our product include:



1. Advanced Lubrication System: Our low noise bearing is equipped with an advanced lubrication system that ensures smooth operation and reduces friction, leading to a longer service life.



2. Reduced Noise: Our bearing is designed to offer low-noise performance, making it ideal for applications where noise pollution is a concern.



3. High-Quality Materials: Our bearing is made from high-quality materials that are durable and resistant to wear and tear, leading to a longer service life.



4. Customizable: Our 6208 Low Noise Bearing can be customized to meet specific customer requirements, making it an ideal choice for various applications.



5. Enhanced Sealing: Our bearing is equipped with enhanced sealing that ensures contaminants are kept out, leading to a longer service life.



Applications:



The 6208 Low Noise Bearing is used in a wide range of applications, including:



1. Automotive Industry: Our bearing is used in various automotive applications, including engine, transmission, and suspension systems.



2. Aerospace Industry: Our bearing is used in the aerospace industry for applications such as landing gear, engine systems, and control systems.



3. Manufacturing Industry: Our low noise bearing is used in various manufacturing applications, such as conveyor systems, robotics, and machine tools.



Conclusion:



In conclusion, the 6208 Low Noise Bearing is a high-quality, reliable product that is designed to offer superior performance and reduced noise levels. As a manufacturer of this product, we take pride in the quality of our product and the level of customer service we offer. We are committed to providing our customers with high-quality bearings that meet their specific needs and requirements. So, if you are looking for a low noise bearing that is durable, reliable, and capable of performing effectively under extreme operating conditions, then the 6208 Low Noise Bearing is the ideal choice. Contact us today to learn more about our product and how it can benefit your operations.



● Introduction


Our company has a certain share in the global market thanks to our excellent 6208 Low Noise Bearing, high-quality employees, unique corporate culture and innovative teamwork spirit.  Our company adheres to the business philosophy of honesty and professionalism, and is dedicated to providing every customer with the fastest and most efficient service. With many years good service and development, we've a professional international trade sales team.

As a professional manufacturer of 6208 Low Noise Bearing, we continue to explore, research and develop resources to comprehensively utilize new technologies, and pursue green manufacturing and scientific development of products.  In all our business areas, we are close to consumers and provide them with innovative and lasting solutions. The company has always been adhering to continuous innovation as the driving force, and constantly creating new value for customers.




Production Details


Details

Our 6208 low noise bearings are sold overseas, and our excellent product quality and perfect service have won wide acclaim from customers at home and abroad.  Hope to obtain your inquiries to get a happy co-operation. We always adhere to the management philosophy of quality as the life, market as the guide, management as the root, and service as the purpose, and actively establish long-term cooperation with customers from various industries.skf 6208


Technical Parameters




6208 low noise bearing



6208 bearing size

ball bearing 6208

Bore diameter

d

40 mm

Outside diameter

D

80 mm

Width

B

18 mm

Chamfer dimension

r

min. 1.1 mm

Shoulder diameter outer ring

D1

≈ 67.5 mm

Caliber diameter outer ring

D2

Shoulder diameter inner ring

d1

≈ 53 mm

Diameter of shaft shoulder

da

min. 47 mm

Diameter of housing shoulder

Da

max. 73 mm

Fillet radius

ra

max. 1 mm

Basic dynamic load rating

Cr

29 000 N

Basic static load rating

Cor

18 000 N

Fatigue load limit

Cur

1 050 N

Limiting speed

nG

20 000 r/min

Reference speed

nB

9 300 r/min

Mass

m

≈ 0.372 kg


Tolerance and Radial Clearance



The standard of tolerance is DIN 620-2: Tolerances for rolling bearings.



Dimensions

Tolerance

Radial Clearance

P0

P6

P5

C0

C3

Bore diameter

d

40 mm

-12 ~ 0 um

-10 ~ 0 um

-8 ~ 0 um

6 ~ 20 um

15 ~ 33 um

Outside diameter

D

80 mm

-13 ~ 0 um

-11~ 0 um

-9 ~ 0 um

Width

B

18 mm

-120 ~ 0 um

-120 ~ 0 um

-120 ~ 0 um


Noise Level and Vibration Level

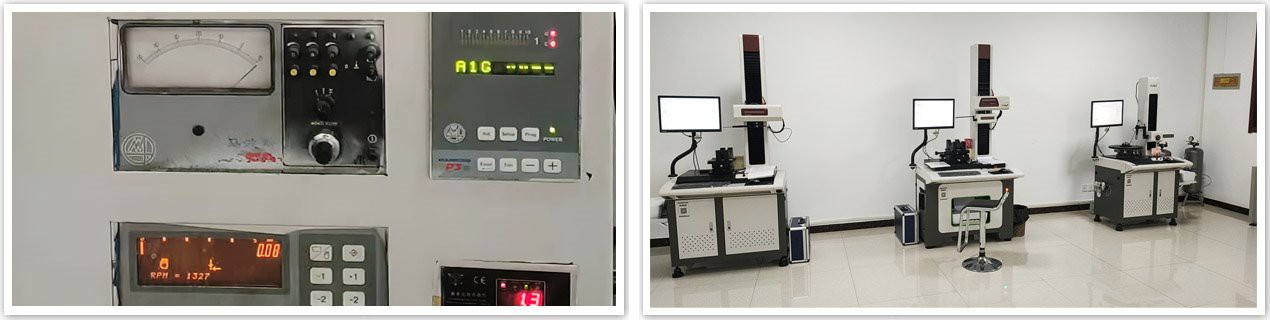

The standard of noise level is JB/T 7047: Noise level measuring with the instrument S0910.

The standard of vibration level is JB/T 10187: Vibration level measuring with the instrument BVT.


Dimensions

Noise level

Vibration level

Z

Z1

Z2

Z3


V

V1

V2

V3

V4

Bore diameter

d

40 mm

54 dB

52 dB

47 dB

44 dB

L

360 um/s

240 um/s

180 um/s

110 um/s

82 um/s

Outside diameter

D

80 mm

M

300 um/s

180 um/s

150 um/s

90 um/s

50 um/s

Width

B

18 mm

H

260 um/s

160 um/s

130 um/s

80 um/s

50 um/s


FAQ (Frequently Asked Questions)



Q1: How long will our the inquiry and question be answered?

A1: After receiving your inquiry and question, we will reply you within 1 to 6 hours.

Q2: How about the quality of bearings?

A2: We supply high quality bearings and strictly follow ISO9001 standard for production.

Q3: What is the MOQ of the products?

A3: Usually the MOQ is 1 piece, and depending on the model.

Q4: How about the Delivery time of the products?

A4: Usually the delivery time is 3 to 15 days, and depending on the quantity.

Q5: How do you control the quality of the products and check the quality before delivery?

A5: Our company has a professional quality inspection department, which strictly controls the quality of products, and has complete after-sale service.


Packing Methods



6208 c3ntn 6208nsk 6208
Tube PackageSingle Box PackagePallet Package


Delivery Methods



6208 bearing price40x80x18bearing 6208 skf
By ExpressBy SeaBy Air




Why choose us?

  • Our Deep Groove Ball Bearings products are suitable for use in a wide range of environmental conditions, from extreme heat to extreme cold.
  • After years of operation, we have accumulated rich practical experience in product development, quality management, customer service and cost control.
  • We are constantly researching and developing new and innovative Deep Groove Ball Bearings products to meet the evolving needs of our customers.
  • The company always takes "serving customers and creating value for customers" as its tenet, carries forward the enterprise spirit of "integrity, dedication, collaboration and innovation", and adheres to the core values of pursuing quality and innovation-driven development. We are committed to building a globally renowned company and making new contributions to product innovation and service modernisation.
  • We have a comprehensive warranty program for our Deep Groove Ball Bearings products to ensure customer satisfaction.
  • We insist on creating a mutual win-win model and believe that anything is possible.
  • Our team of experts is always available to provide technical support for our Deep Groove Ball Bearings products.
  • We are a professional enterprise engaged in the development, manufacture, production and sales of 6208 Low Noise Bearing. We take pride in achieving and maintaining consistency high standards of quality. Please feel free to contact us!
  • Our company is committed to providing environmentally friendly and sustainable Deep Groove Ball Bearings products.
  • In accordance with all quality control process requirements, we ensure that all the 6208 Low Noise Bearing meet our customers' needs.
