6206 2RS Low Noise Bearing
Material: GCr15, Carbon steel
Precision: P0, P6, P5
Noise level and vibration: ZV, Z1V1, Z2V2, Z3V3, Z4V4
Radial clearance: C0, C3
Working temperature range: -30℃~110℃
Grooves: Superfinishing
Number of Row: Single row
Ball precision: G10
Payment terms: T/T, L/C, Paypal, Western union, Moneygram
Feature: High-precision, Low-noise, Long-life
Description
.
As a manufacturer based in China, we take immense pride in presenting our innovative and high-quality product – the 6206 2RS Low Noise Bearing. Our product is designed to cater to the needs of merchants situated across various countries outside of China. We understand that our customers are always on the lookout for products that not only meet their business requirements but also provide them with the peace of mind that they are making the right choice. Hence, we have engineered the 6206 2RS Low Noise Bearing to suit the needs of our customers in the best way possible.
Our product is a low-noise ball bearing that is built to last. It is ideal for use in a variety of applications where stability, accuracy, durability, and low noise are critical requirements. Our 6206 2RS Low Noise Bearing is made of only the finest materials and features a double rubber seal, which provides excellent protection against dust, dirt, and other contaminants. With this bearing, we have taken great care in crafting a product that meets the stringent quality standards required in today's global market.
We understand that when it comes to bearings, noise can be a big issue. Noisy bearings are often a result of poorly designed products, which can lead to decreased productivity and increased costs. That's why we have put significant emphasis on developing a low noise bearing that caters to the demands of merchants. Our 6206 2RS Low Noise Bearing is manufactured to have a noise level of less than 30 decibels, making it one of the quietest bearings on the market.
Another critical aspect of our product is its durability. We understand that our customers require bearings that can withstand the most challenging applications. Therefore, we have used only the best materials to ensure that our product can handle these challenging tasks. Our 6206 2RS Low Noise Bearing is made of high-quality chrome steel that provides excellent corrosion resistance, making it ideal for rugged, outdoor environments where harsh elements are a constant threat.
Additionally, our 6206 2RS Low Noise Bearing is designed to provide exceptional accuracy, which is essential when it comes to specific applications. Our product is perfect for use in equipment where precision is essential, such as motors, industrial machinery, and even medical equipment. Through our efforts to provide our merchants with the best possible product, we have ensured that our 6206 2RS Low Noise Bearing provides the highest level of performance in all these areas.
In conclusion, our 6206 2RS Low Noise Bearing is an ideal product for merchants who require high-quality bearings that offer low noise, durability, accuracy, and reliability. As a manufacturer, we are committed to creating innovative products that cater to the unique requirements of our customers. We have put our decades of expertise into creating a product that meets the highest industry standards, making us one of the most trusted manufacturers in the market. So, if you are in the market for a low noise bearing that is built to last, the 6206 2RS Low Noise Bearing is the perfect solution for you. We take pride in our product and look forward to working with you to provide you with the best possible solution.
● Introduction
6206 2RS low noise bearing is single row deep groove bearings. Deep groove ball bearings have a simple structure and don't have to be maintained during operation, and they are low-cost and widely used bearings. The material of the bearings is GCr15, which has structural and dimensional stability and is capable of stable performance at the required working temperature. Bearings are widely used in automobiles, industrial machinery, precision instruments, tractors and other fields.

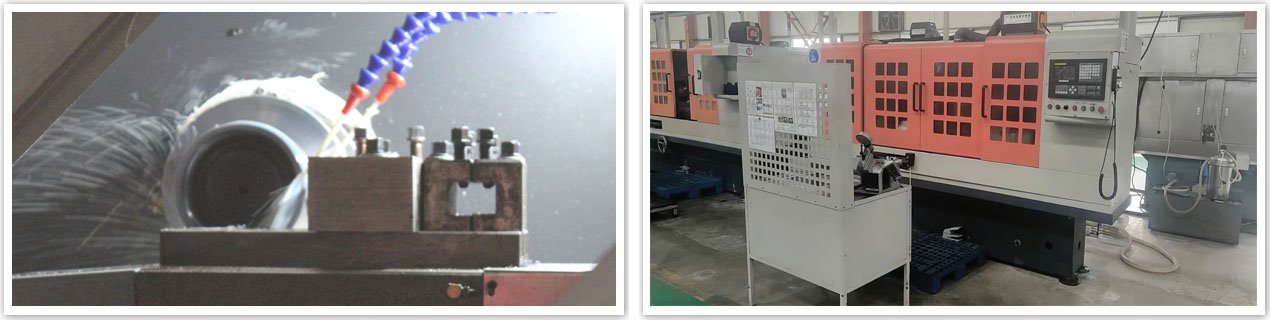

● Production Details
Turning bearing outer diameter and tapered or cylindrical raceway and inner diameter of the inner ring, when the turning tool fast to the edge of the collar, the surface will be more than cut off a piece, called pressure edge. This situation often occurs in the longitudinal tool holder for the hydraulic (or pneumatic) pressure transmission lathe, but processing members of the cone outer raceway appears more. If the inner diameter, outer diameter and cylindrical outer raceway has been processed. Because of the car assembly chamfer or car ramp when most of the pressure edge can be cut away. Its impact is not significant. Pressure edge subheavy, by the future heat treatment, after the decay processing, the part of the car will be more than the formation of black skin, affecting the bearing appearance quality.
● Technical Parameters
6206 2RS low noise bearing | |||
Bore diameter | d | 30 mm | |
Outside diameter | D | 62 mm | |
Width | B | 16 mm | |
Chamfer dimension | r | min. 1 mm | |
Shoulder diameter outer ring | D1 | – | |
Caliber diameter outer ring | D2 | ≈ 54.9 mm | |
Shoulder diameter inner ring | d1 | ≈ 40 mm | |
Diameter of shaft shoulder | da | min. 35.6 mm | |
Diameter of housing shoulder | Da | max. 56.4 mm | |
Fillet radius | ra | max. 1 mm | |
Basic dynamic load rating | Cr | 19 300 N | |
Basic static load rating | Cor | 11 200 N | |
Fatigue load limit | Cur | 680 N | |
Limiting speed | nG | 7 500 r/min | |
Reference speed | nB | – | |
Mass | m | ≈ 0.201 kg |
● Quality Testing
At present, the domestic export of bearings to Europe, China's military and aerospace industry are in accordance with the standard for bearing quality inspection, while detecting the quality of imported bearings in Europe and distinguish counterfeit imported bearings to provide a viable means.
Dimensions | Tolerance | Radial Clearance | |||||
P0 | P6 | P5 | C0 | C3 | |||
Bore diameter | d | 30 mm | -10 ~ 0 um | -8 ~ 0 um | -6 ~ 0 um | 5 ~ 20 um | 13 ~ 28 um |
Outside diameter | D | 62 mm | -13 ~ 0 um | -11~ 0 um | -9 ~ 0 um | ||
Width | B | 16 mm | -120 ~ 0 um | -120 ~ 0 um | -120 ~ 0 um |
● Precision Standard
Check whether the steel print word is clear: each bearing product will be printed on the bearing product body with its brand lettering, markings, etc. Although the font is very small, but the regular manufacturers of products are using the steel printing technology printing, and before the heat treatment of the embossed word, so its font is small, but concave deep, very clear. And usually, counterfeit products, the font is not only fuzzy, due to the printing technology is rough, the font floats on the surface, some even easily can be erased by hand or manual traces of serious.
As the original vibration acceleration standard has not been abolished, so the standard is to mechanical industry ministry standards appear, is a reference to the European standards combined with the actual situation and needs of China to test the bearing vibration speed to classify the quality level of bearings (equivalent to national standards).
Dimensions | Noise level | Vibration level | ||||||||||
Z | Z1 | Z2 | Z3 | V | V1 | V2 | V3 | V4 | ||||
Bore diameter | d | 30 mm | 50 dB | 48 dB | 44 dB | 41 dB | L | 300 um/s | 200 um/s | 150 um/s | 90 um/s | 70 um/s |
Outside diameter | D | 62 mm | M | 240 um/s | 150 um/s | 120 um/s | 75 um/s | 35 um/s | ||||
Width | B | 16 mm | H | 190 um/s | 130 um/s | 100 um/s | 60 um/s | 40 um/s |
● Shaanxi Gainhui Heavy Industries Co., Ltd.
Our company is a professional bearing manufacturer and and distributor in china. Equipped with a professional large factory, we can supply competitive bearing products and OEM service to worldwide customers. With high quality, competitive price and great after-sale service of 6206 2RS low noise bearing, welcome to contact us in time.
Because we are focused, we are professional.
● Packing Details
![]() | ![]() | ![]() |
Tube Package | Single Box Package | Pallet Package |
● Delivery Details
![]() | ![]() | ![]() |
By Express | By Sea | By Air |
Why choose us?
- Our company offers a wide range of Deep Groove Ball Bearings products that are of premium quality.
- We continue to grow our strength, promote the enterprise business to the next level and build a hundred-year brand.
- Our company is focused on long-term relationships with our customers, based on trust and mutual benefit.
- We always implement the management policy of reliability, efficiency, safety and harmony, and sustainable development.
- We are constantly researching and developing new and innovative Deep Groove Ball Bearings products to meet the evolving needs of our customers.
- Our price will be factory direct price, it is the best price.
- We offer a wide range of Deep Groove Ball Bearings products in a variety of sizes, materials, and specifications.
- We adhere to quality management, gradually increase the visibility of our company, and expand market share.
- Our Deep Groove Ball Bearings are widely recognized for their superior performance and durability.
- In order to meet the needs of customers, the company is committed to improving the functions and improving the quality of 6206 2RS Low Noise Bearing products, and has built a diverse operating industry group with diverse formats and industries.
