6204 High Speed Bearing

6204 High Speed Bearing

Material: GCr15, Carbon steel
Precision: P0, P6, P5
Noise level and vibration: ZV, Z1V1, Z2V2, Z3V3, Z4V4
Radial clearance: C0, C3
Working temperature range: -30℃~120℃
Certificate: ISO9001:2015
Port: Shanghai, Xi'an, Qingdao, Guangzhou
Grooves: Superfinishing
Package: Tube package, Single box
Feature: High-precision, Low-noise, Long-life

Description

for my product.



Introduction:



The 6204 High Speed Bearing is a product designed to meet the increasing demand for high-speed machinery bearings. As a manufacturer located in China, our company specializes in the production of high-quality bearings that are incorporated into a wide range of industrial applications. The 6204 High Speed Bearing is one of our most sought-after products, which has been designed using the latest technology and engineering standards.



Features:



The 6204 High Speed Bearing is designed to offer superior performance and durability, even under extreme operating conditions. It is made using high-grade materials that are carefully selected to meet stringent quality control standards. The bearing is equipped with advanced lubrication technologies, which ensures long-lasting performance and efficiency. It has also been designed to deliver low noise and vibration levels, which means it is ideal for use in noise-sensitive applications.



Benefits:



Our 6204 High Speed Bearing offers numerous benefits to merchants and end-users. Firstly, its high-speed capability means that it can support fast and efficient machinery operations. It delivers exceptional performance even under the most demanding conditions, making it an ideal choice for industrial applications. It is also easy to install and maintain, which allows for smooth and hassle-free operations.



Furthermore, our 6204 High Speed Bearing supports high load capacity and ensures less friction, which translates to longer bearing life and reduced maintenance costs. Its advanced lubrication techniques ensure that the bearing stays lubricated even under high-speed operations, which minimizes wear and tear on the bearing.



Applications:



The 6204 High Speed Bearing is widely used in a variety of industrial applications and machinery, including manufacturing, construction, mining, and automotive industries. It is especially suitable for use in equipment that requires high-speed and high-load capacity, such as centrifugal pumps, electric motors, and compressors. The bearing is also highly suitable for use in noise-sensitive environments, such as hospitals or laboratories, due to its low noise and vibration levels.



Quality Control:



As a leading manufacturer of high-quality bearings, we are committed to ensuring that all our products, including the 6204 High Speed Bearing, meet the highest quality standards. We have implemented strict quality control procedures that cover every step of the production process, from raw material selection to final product inspection. Our production facilities are equipped with advanced testing equipment that is used to ensure that every bearing that leaves our factory meets the required quality standards.



Conclusion:



If you are looking for a high-quality, reliable, and efficient bearing for your industrial or machinery application, our 6204 High Speed Bearing is the perfect choice. With its superior performance, durability, and low maintenance requirements, it offers merchants and end-users a cost-effective solution that meets their needs. As a leading manufacturer located in China, we are committed to providing our customers with the highest quality products and services, and the 6204 High Speed Bearing is no exception.



● Introduction


We have always been committed to becoming a leader in technology research and development and ecological environment improvement in the world's 6204 High Speed Bearing industry. Our company has a strict quality control system and very professional engineering and technical personnel to fully ensure the production and after-sales service of products. Our company adheres to technical innovation first, market-oriented, quality as vitality and win the trust of customers. Our punctual and in place service solves problems for the majority of users, so as to win the praise of the majority of users.

We focus on recommending 6204 High Speed Bearing with company characteristics, and strive to enhance the competitiveness and influence of products. Integrity is the foundation of the enterprise, we strive to deliver on time, ensure quality, and provide you with good after-sales service. All employees of the company adopt a truth-seeking and pragmatic attitude, and the spirit of excellence. Facing the future, we will vigorously enhance the ability of scientific and technological innovation and product R&D, and strive to become the technology leader and market leader of the industry.

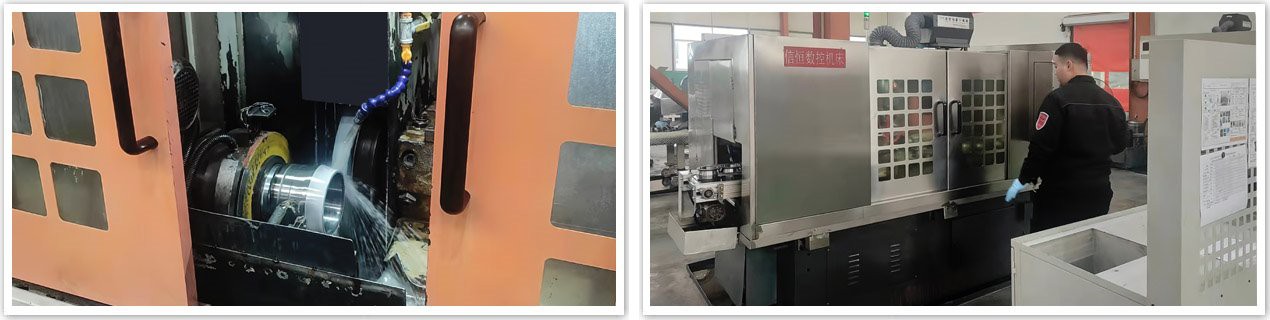

Production Details


Details

The higher the accuracy of 6204 High Speed Bearing, the error is very small, the synchronization consistency is very strong, and the operation is stable,and it also can use extreme weather, low temperature resistance, adapt to the environment, the application field continues to expand.





ball bearing 6204


Technical Parameters



The standard of boundary dimensions is ISO 15: Rolling bearings - Radial bearings - Boundary dimensions, general plan.


6204 high speed bearing



6204 bearing size

skf 6204

Bore diameter

d

20 mm

Outside diameter

D

47 mm

Width

B

14 mm

Chamfer dimension

r

min. 1 mm

Shoulder diameter outer ring

D1

≈ 38.4 mm

Caliber diameter outer ring

D2

Shoulder diameter inner ring

d1

≈ 28.8 mm

Diameter of shaft shoulder

da

min. 25.6 mm

Diameter of housing shoulder

Da

max. 41.4 mm

Fillet radius

ra

max. 1 mm

Basic dynamic load rating

Cr

12 700 N

Basic static load rating

Cor

6 550 N

Fatigue load limit

Cur

440 N

Limiting speed

nG

18 000 r/min

Reference speed

nB

16 300 r/min

Mass

m

≈ 0.106 kg


Tolerance and Radial Clearance



The standard of tolerance is DIN 620-2: Tolerances for rolling bearings.

The standard of radial clearance is ISO 5753−1

Dimensions

Tolerance

Radial Clearance

P0

P6

P5

C0

C3

Bore diameter

d

20 mm

-10 ~ 0 um

-8 ~ 0 um

-6 ~ 0 um

5 ~ 20 um

13 ~ 28 um

Outside diameter

D

47 mm

-11 ~ 0 um

-9~ 0 um

-7 ~ 0 um

Width

B

14 mm

-120 ~ 0 um

-120 ~ 0 um

-120 ~ 0 um


Noise Level and Vibration Level



The standard of noise level is JB/T 7047: Noise level measuring with the instrument S0910.

The standard of vibration level is JB/T 10187: Vibration level measuring with the instrument BVT.


Dimensions

Noise level

Vibration level

Z

Z1

Z2

Z3


V

V1

V2

V3

V4

Bore diameter

d

20 mm

48 dB

46 dB

42 dB

38 dB

L

260 um/s

180 um/s

130 um/s

80 um/s

60 um/s

Outside diameter

D

47 mm

M

190 um/s

125 um/s

100 um/s

60 um/s

25 um/s

Width

B

14 mm

H

150 um/s

100 um/s

75 um/s

45 um/s

25 um/s


Certification



20x47x14 bearing




Packing Methods



bearing 47x20x146204 ntn47x20x14 bearing
Tube PackageSingle Box PackagePallet Package


Delivery Methods



skf 6204 bearing6204 koyodiameter bearing 6204
By ExpressBy SeaBy Air
