6202 2RS Ball Bearing

6202 2RS Ball Bearing

Material: GCr15, Carbon steel
Precision: P0, P6, P5
Noise level and vibration: ZV, Z1V1, Z2V2, Z3V3, Z4V4
Radial clearance: C0, C3
Working temperature range: -30℃~110℃
Tolerance standard: DIN 620-2
Supply ability: 100000 pieces per month
Lubricated: Oil, Grease
Application: Machinery
Feature: High-precision, Low-noise, Long-life

Description

As a leading manufacturer of ball bearings in China, we are excited to introduce our product, the 6202 2RS Ball Bearing. Our bearings are designed and manufactured to meet the highest standards of quality, durability, and performance.



Made with precision steel balls, the 6202 2RS Ball Bearing is engineered to provide ultra-smooth performance while reducing the amount of friction generated within the bearing. This helps to improve the efficiency of machinery that utilizes our bearings, leading to reduced energy consumption and extended equipment lifespan.



Our 6202 2RS Ball Bearing is an ideal choice for a wide range of applications, from small hand-held devices to large industrial machinery. The double rubber seals on either side of the bearing provide excellent protection against dust, dirt, and moisture, making them perfect for use in harsh environments.



Furthermore, our bearings are designed to operate quietly, reducing noise levels in machinery and providing a more comfortable working environment. This feature is particularly important in applications where noise pollution is a concern such as hospitals or residential areas.



The 6202 2RS Ball Bearing is easy to install and maintain, requiring minimal downtime for maintenance and repair. The bearing can be easily cleaned and re-greased, ensuring its longevity and consistent performance. Additionally, our bearing is compatible with a wide range of lubricants, making it easier to find the right lube for your specific application.



We take pride in providing our customers with the highest quality bearings at extremely competitive prices. By choosing our 6202 2RS Ball Bearing, you will receive a product that not only meets but exceeds industry standards. With our commitment to quality and customer satisfaction, you can be confident that you are making a wise investment in your business.



Don't hesitate to get in touch with us for further information on our 6202 2RS Ball Bearing, or any other products in our extensive range. Our team of experts is always on hand to answer any questions you may have and guide you through the process of selecting the perfect bearing for your specific requirements.



In summary, our 6202 2RS Ball Bearing is a high-quality, versatile, and durable bearing that provides exceptional performance in a wide range of applications. With its long lifespan, easy maintenance, and low noise operation, it is the perfect choice for businesses seeking reliable and efficient machine components. Contact us today to learn more about how our 6202 2RS Ball Bearing can benefit your business.



● Introduction


We strive to innovate and continuously develop in the field of 6202 2RS Ball Bearing, supply the market with high-quality products, and realize the company's dream of 'high-quality products'. We always adhere to the principle of 'technological innovation, quality-oriented, customer first', and focus on providing professional services while providing high-quality products, we have won the trust of customers at home and abroad. We reject fantasies, oppose paper talk, and pursue a substantial and energetic management approach. We are dedicated to providing professional products and sincere services to our customers by adhering to the concept of "delivering zero-defect and competitive products and services to customers on time"

We recognize that our 6202 2RS Ball Bearing need to be improved in order to remain competitive in the marketplace.  We adhere to the corporate spirit of "unity, dedication, truth-seeking, and innovation", strive for scientific and harmonious development, and make unremitting efforts to improve the quality of life of consumers. We have formed a set of scientific, strict and efficient quality assurance system,  and has a perfect 'customer-centered' sales and service network, can timely provide customers with perfect pre-sale, sale and after-sale service.

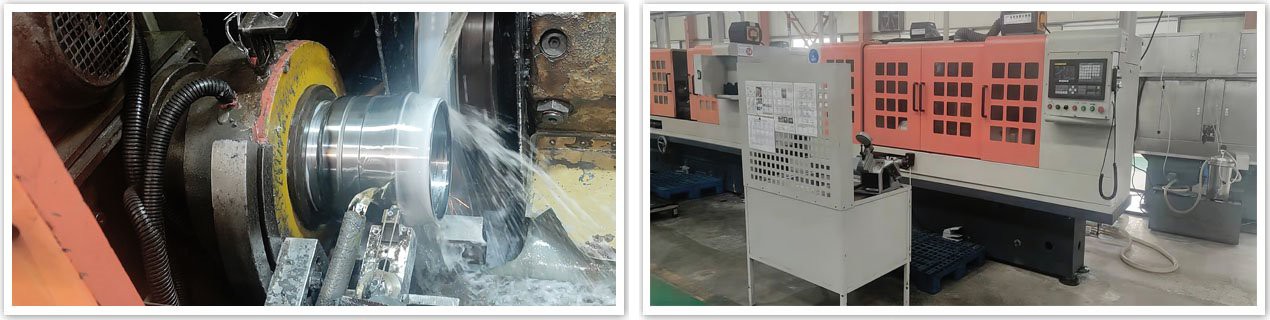

Production Details


Details

6202 2RS ball bearings make the inner diameter of deep groove ball bearings different from other products, which also causes the difference between the outer diameter and width, and the bearings are sealed with rubber, dustproof performance is very good, and can effectively improve the quality of lubrication, can well control the oil pressure, temperature and flow.

6202 bearing price


Technical Parameters



The standard of boundary dimensions is ISO 15: Rolling bearings - Radial bearings - Boundary dimensions, general plan.


6202 2RS ball bearing



6202 2rs

6202rs

Bore diameter

d

15 mm

Outside diameter

D

35 mm

Width

B

11 mm

Chamfer dimension

r

min. 0.6 mm

Shoulder diameter outer ring

D1

Caliber diameter outer ring

D2

≈ 30.9 mm

Shoulder diameter inner ring

d1

≈ 21.1 mm

Diameter of shaft shoulder

da

min. 19.2 mm

Diameter of housing shoulder

Da

max. 30.8 mm

Fillet radius

ra

max. 0.6 mm

Basic dynamic load rating

Cr

7 800 N

Basic static load rating

Cor

3 750 N

Fatigue load limit

Cur

220 N

Limiting speed

nG

14 000 r/min

Reference speed

nB

Mass

m

≈ 0.045 kg


Tolerance and Radial Clearance



The standard of tolerance is DIN 620-2: Tolerances for rolling bearings.

The standard of radial clearance is ISO 5753−1: Rolling bearings. Internal clearance. Part 1.Radial internal clearance for radial bearings.


Dimensions

Tolerance

Radial Clearance

P0

P6

P5

C0

C3

Bore diameter

d

15 mm

-8 ~ 0 um

-7 ~ 0 um

-5 ~ 0 um

3 ~ 18 um

11 ~ 25 um

Outside diameter

D

35 mm

-11 ~ 0 um

-9~ 0 um

-7 ~ 0 um

Width

B

11 mm

-120 ~ 0 um

-120 ~ 0 um

-80 ~ 0 um


Noise Level and Vibration Level



The standard of noise level is JB/T 7047: Noise level measuring with the instrument S0910.

The standard of vibration level is JB/T 10187: Vibration level measuring with the instrument BVT.


Dimensions

Noise level

Vibration level

Z

Z1

Z2

Z3


V

V1

V2

V3

V4

Bore diameter

d

15 mm

46 dB

44 dB

41 dB

36 dB

L

210 um/s

150 um/s

110 um/s

65 um/s

52 um/s

Outside diameter

D

35 mm

M

150 um/s

100 um/s

78 um/s

46 um/s

18 um/s

Width

B

11 mm

H

120 um/s

85 um/s

60 um/s

35 um/s

18 um/s


Advantages



If you are looking for a 6202 2RS Ball Bearing manufacturer, we are the ideal choice. Please contact us now to get a surprise wholesale price! We adhere to the customer first, forge ahead, innovative business philosophy, actively improve the user's information feedback system, continuous improvement, with good after-sales service and products, win the trust of the majority of users. With the development of business, the company continues to grow, improve management, and continuously develop high-quality products. Seeking enterprise development is our company's unremitting pursuit, the company insists on relying on scientific and technological innovation, constantly absorbing advanced experience at home and abroad, introducing advanced production technology and perfect testing equipment, and establishing a high-quality modern team.



Packing Methods



6202rs bearingdiameter bearing 6202hch bearing 6202 price
Tube PackageSingle Box PackagePallet Package


Delivery Methods



nbc bearing 6202 priceskf bearing 6202 price6201 and 6202 bearing price
By ExpressBy SeaBy Air




Why choose us?

  • Our company has strict quality control processes in place to ensure consistent product quality and customer satisfaction.
  • We will uphold the business philosophy of 'brand management, quality win, people-oriented, harmonious development', accelerate the pace of technological innovation, and optimize the product structure. We sincerely cooperate with domestic and foreign customers and all sectors of society to create a better future!
  • We use only the best materials and components in the production of our Deep Groove Ball Bearings products.
  • We establish a long-term management mechanism for self-restraint and continuous improvement of production safety to ensure stable and orderly production safety.
  • We are constantly researching and developing new and innovative Deep Groove Ball Bearings products to meet the evolving needs of our customers.
  • We create quality, seek innovation and lead the future, reflect our value with innovation and performance, and build 6202 2RS Ball Bearing industry brand based on high-quality talents who continuously innovate superior management and culture. Welcome friends from all walks of life to visit and guide on site.
  • We have a team of professionals who are dedicated to producing high-quality and reliable Deep Groove Ball Bearings.
  • We continue to innovate development concepts, improve development strategies and transform development methods, and our company has gradually moved towards diversification and become a comprehensive company involving a variety of businesses and fields.
  • Our company provides clear and transparent pricing for our Deep Groove Ball Bearings products.
  • We strictly implement the management policy of designing 6202 2RS Ball Bearing according to customers' expectations.
